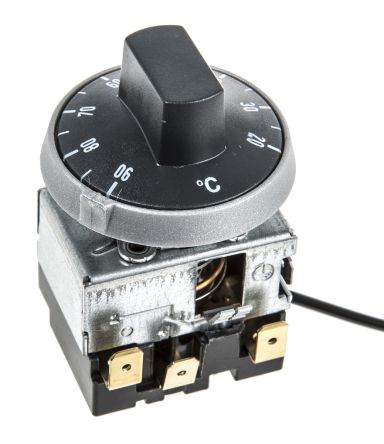

heatTHERM temperature regulator
Temperature regulator, for use as built-in thermostat
Compensates for ambient temperature
Tested in accordance with DIN 3440
Changeover contact output
| Control range: | +20 °C → +90 °C |
| Adjustment scale: | 250° |
| Probe | Copper, Ø 6 mm x 79 mm |
| Probe temperature: | +115 °C max. |
| Capillary length: | 2000 mm, bend radius 5 mm min. |
| Output | |
| - Switching element: | Snap-action switch with single-pole changeover contact |
| - Switching power | N/C contact: 230 Vac, 16 A, cosφ=1 |
| N/O contact: 230 Vac, 6.3 A, cosφ=1 | |
| Switching difference from set point range: | 5 → 11% |
| Electrical connection: | Blade terminal 6.3 x 0.8 mm |
| Mounting: | 2 M4 screws, distance 28 mm |
| Installation location: | Any |
| Housing material | |
| - Housing: | Zinc-plated steel sheet |
| - Switch base: | Polyester resin compound, black |
| Protection rating: | IP00 |
| Dimensions (H x W x D): | 41.5 x 34 x 42 mm |
| Weight: | 120 g |
| Ambient temperature: | max. +85 °C |
